Clinical Examples: Thumb metacarpophalangeal joint arthrodesis with plates and screws

Fusion is a common treatment for pain and deformity from thumb metacarpophalangeal joint arthritis. There are many techniques for this, including hardware variations of pins, wires, plates, screws, and either open or arthroscopic exposure. The joint is usually positioned at an angle between 0 and 15 degrees of flexion, depending on the degree of basal joint adduction and surgeon's preference. These cases demonstrate only a few of the many ways to achieve arthrodesis fixation with plates and screws.
Click on each image for a larger picture

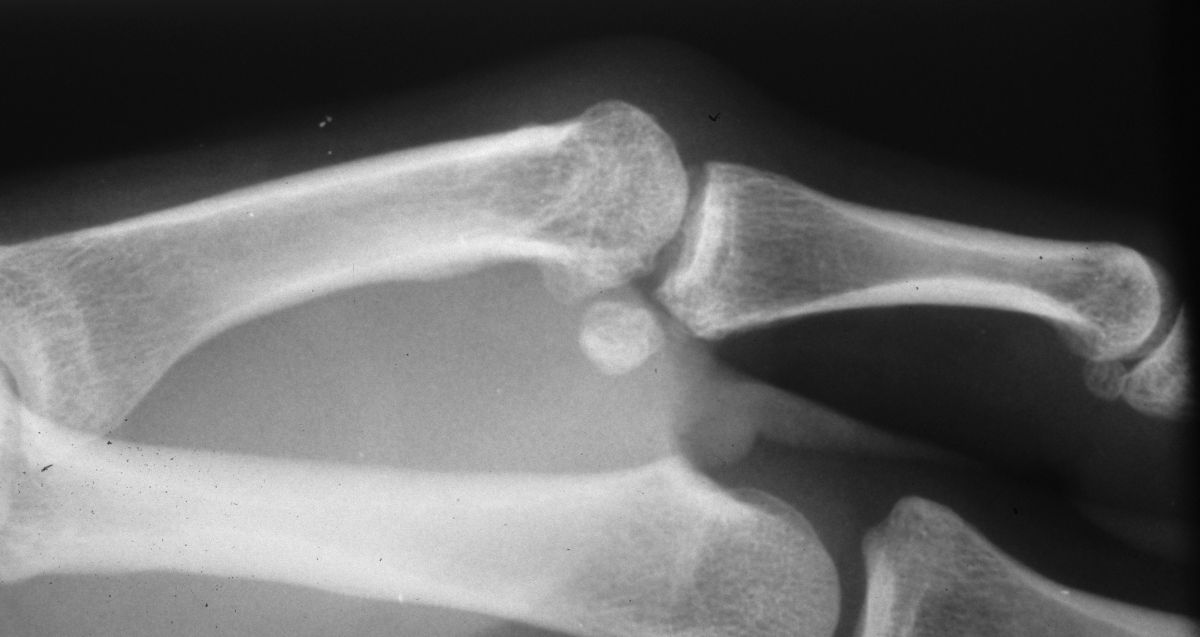

This patient had chronic pain and instability from an old radial collateral ligament rupture followed by both metacarpophalangeal and sesamoid metacarpal arthritis
Highslide

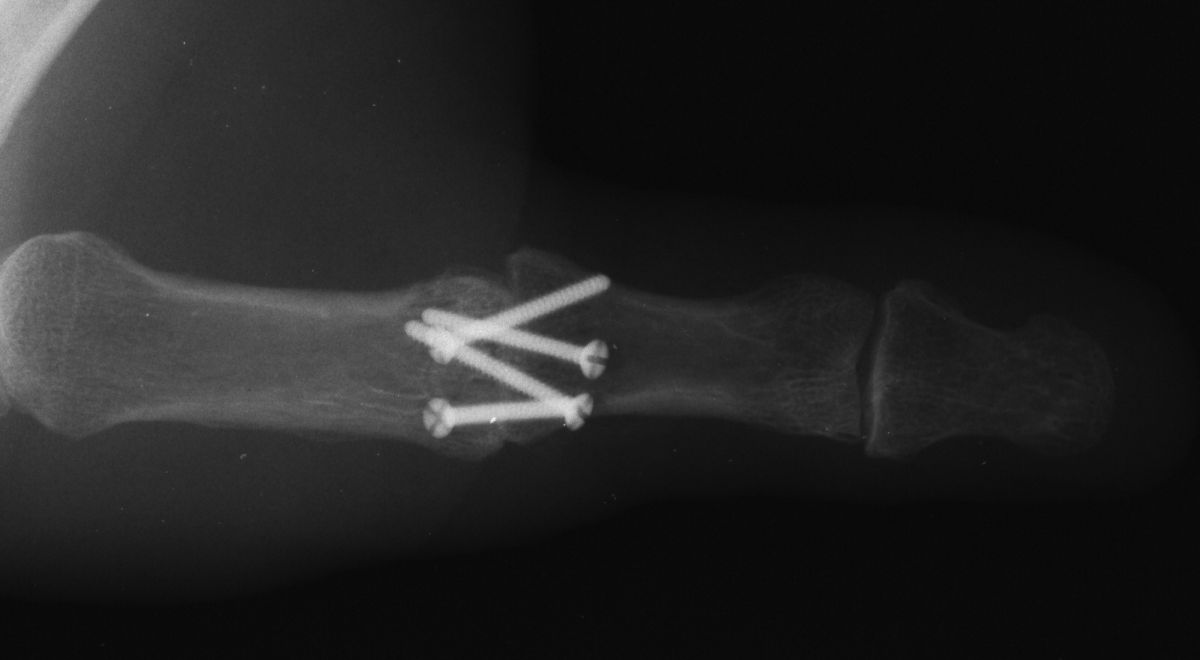

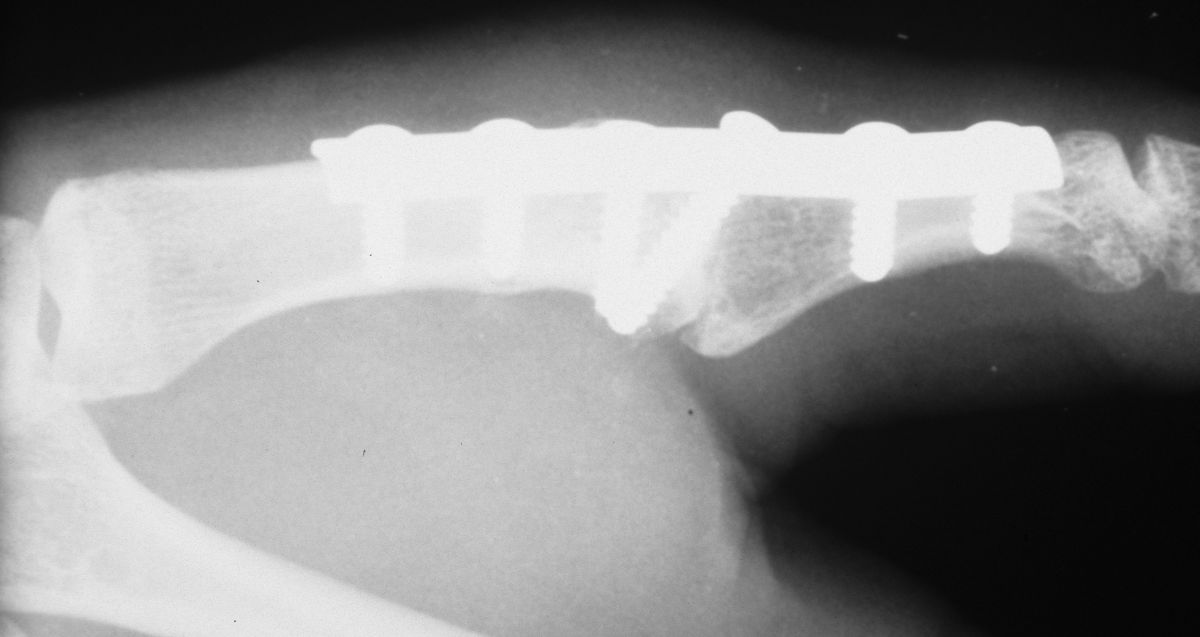

The Synthes mini fragment system was used, with  a lag screw across the fusion site and sesamoid excision.
Highslide
Although the patient healed uneventfully, the  screws seem excessively large for these bones.
Highslide

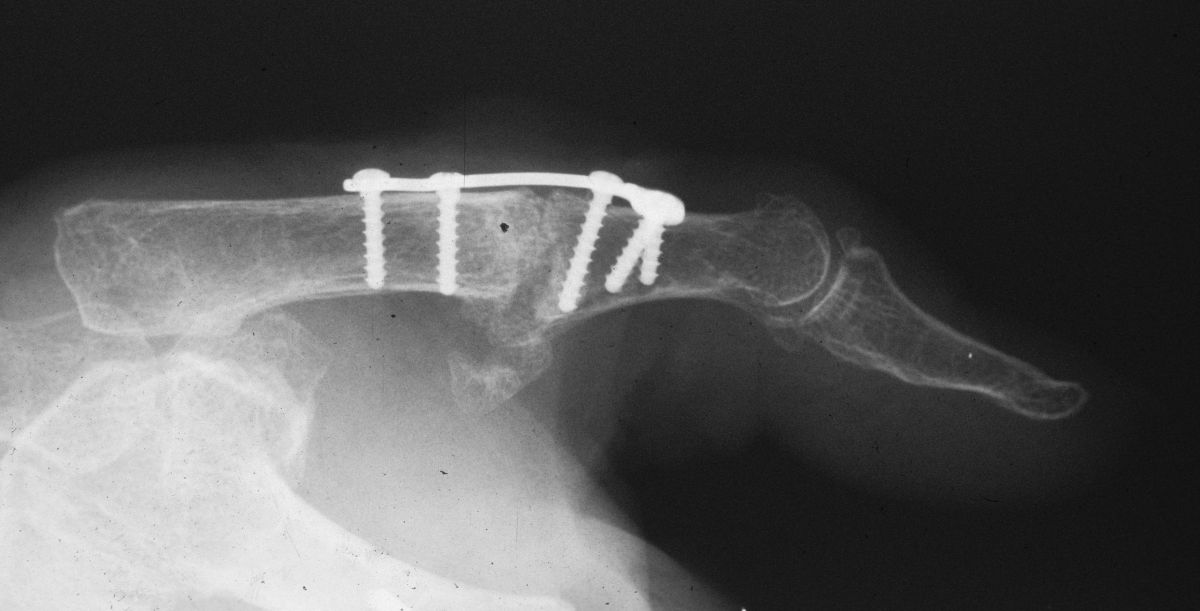

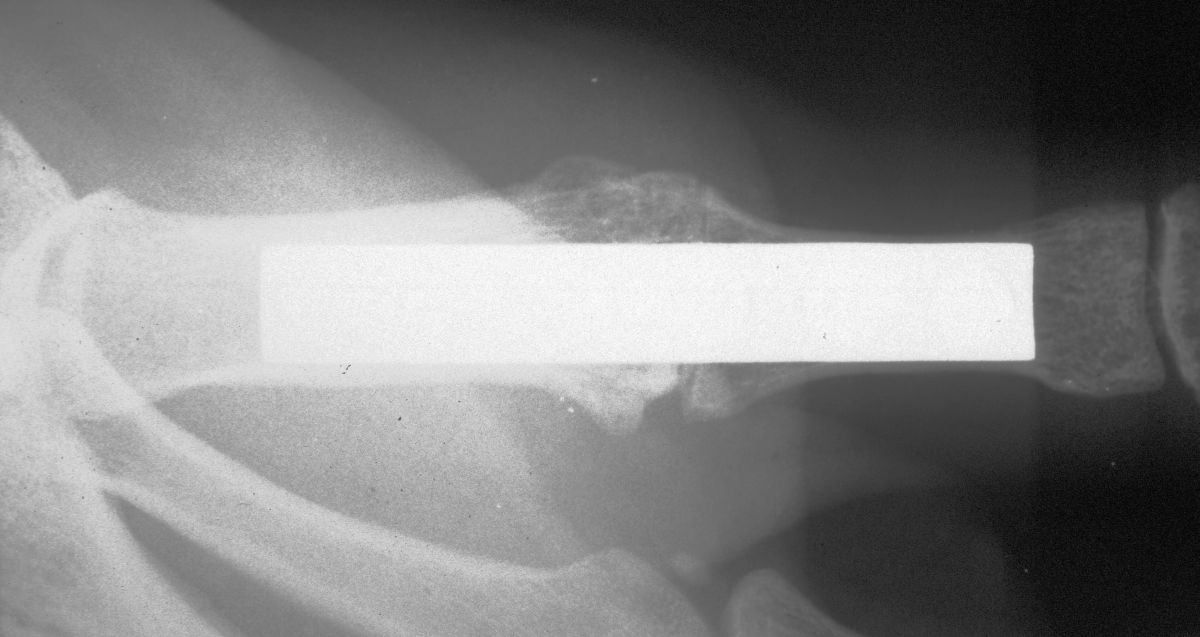

Smaller plates and screws from the Lorenz craniofacial fixation system were used for this MCP fusion.
Highslide
Low profile, but possibly too small in terms of rigidity. Despite this concern, the patient did well.
Highslide

These examples show the need to match the hardware to the job. One problem is that rigid plates can have screws which are relatively too large, while plates for small diameter screws can have inadequate rigidity. One solution is to use screws alone.

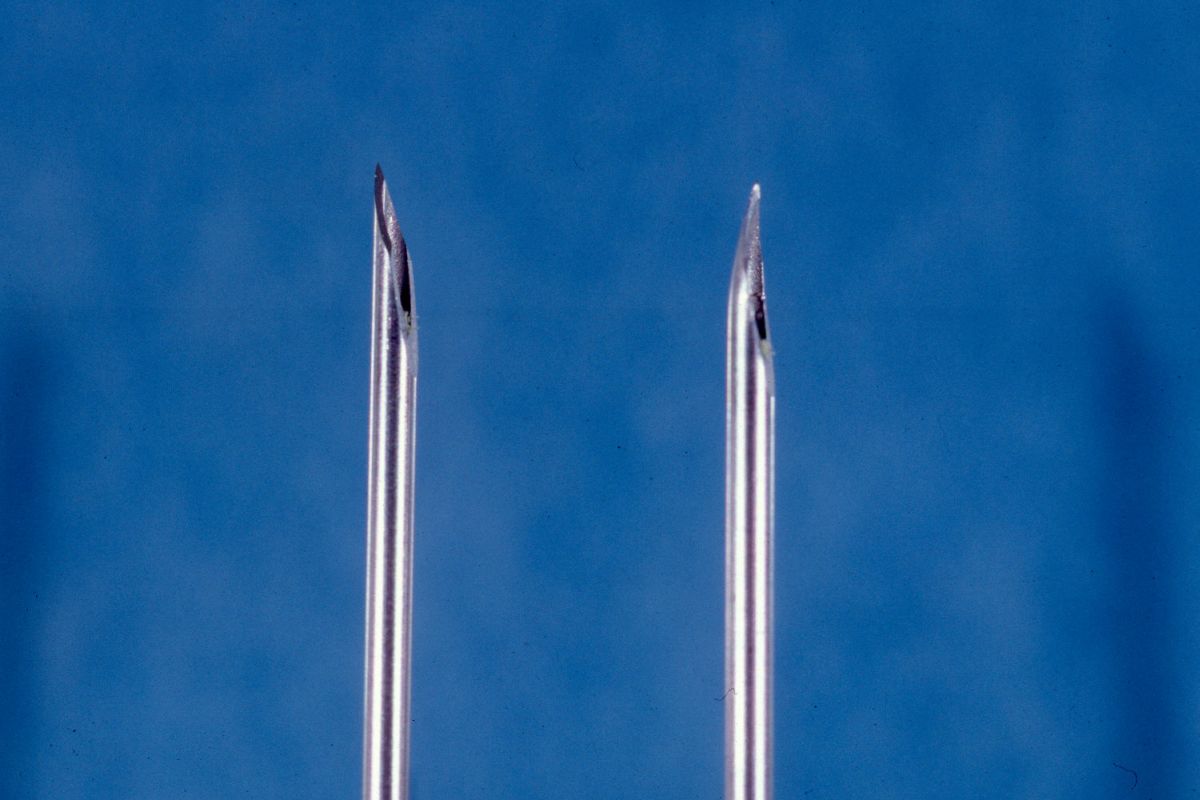

The standard screw technique is to obtain provisional fixation with fracture clamps, drill with a calibrated drill bit, and then place screws. An alternate technique is to obtain provisional fixation with multiple K-wires, and then replace the K-wires one at a time with screws. In some cases, an injection needle may be used as a drill after bending the tip to central axis of the needle, as shown below.
Highslide

The tricky part is matching sizes, as the drills are measured in millimeters, K-wires in thousanths of an inch, and needles by the American Piano Wire Gauge. Here's a handy table listing comparing the best match of K-wires and needles to the drill sizes found in the Synthes modular hand tray:

Screw (mm)
Drill (mm)
K-wire (mm)
K-wire (.001")
Needle gauge
Needle (mm)
Needle (.001")
1.0
0.76
0.71
28
22
0.71
28
1.3
1.0
0.89
35
20
0.90
36
1.5
1.1
1.1
45
19
1.1
42
2.0
1.5
1.4
54
17
1.5
58
2.4
1.8
1.6
62
15
1.8
72

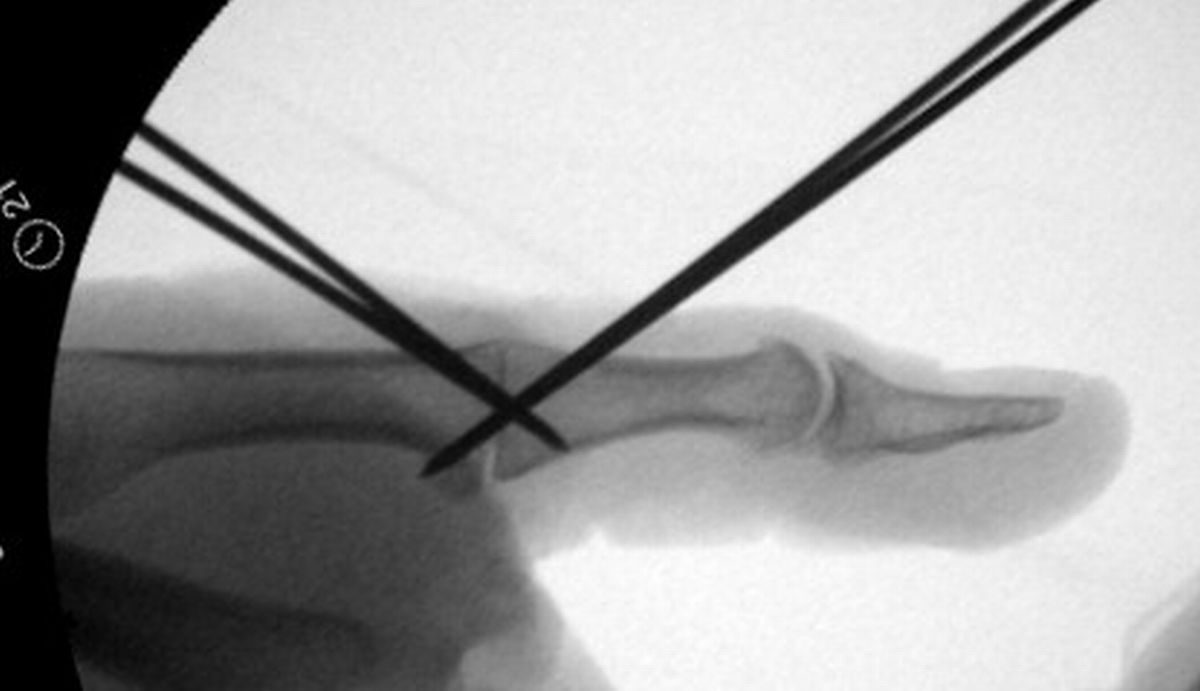

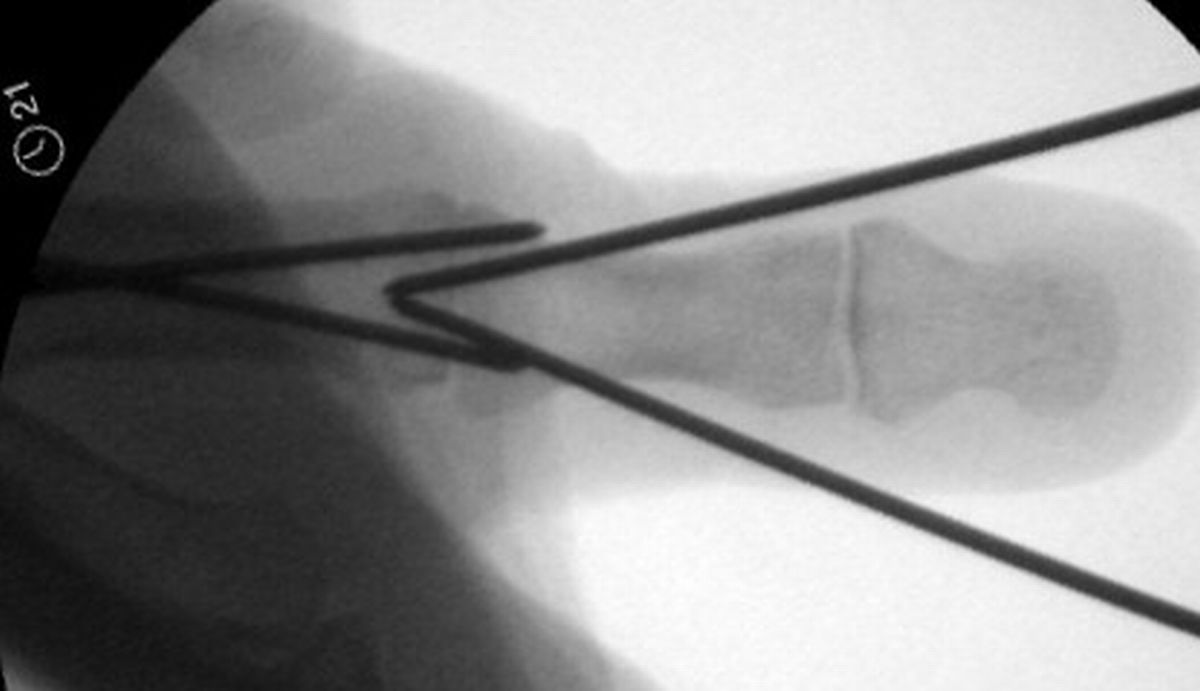

In this case, 0.045" K-wires were used for provisional fixation:
Highslide

Highslide

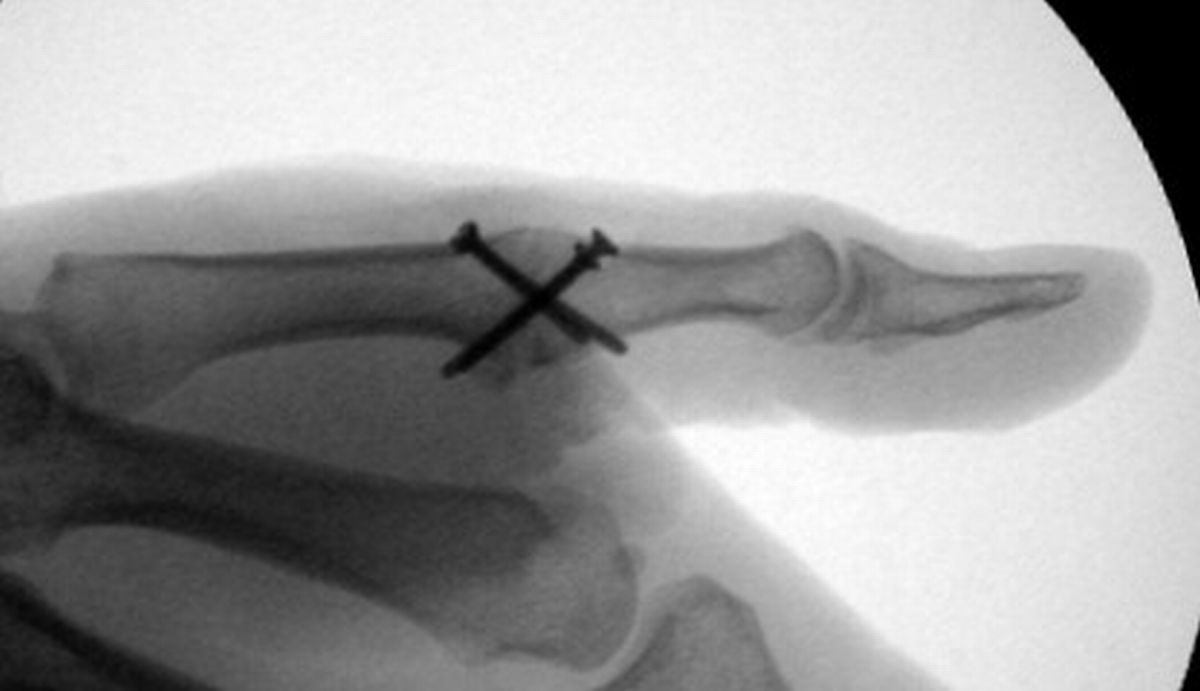

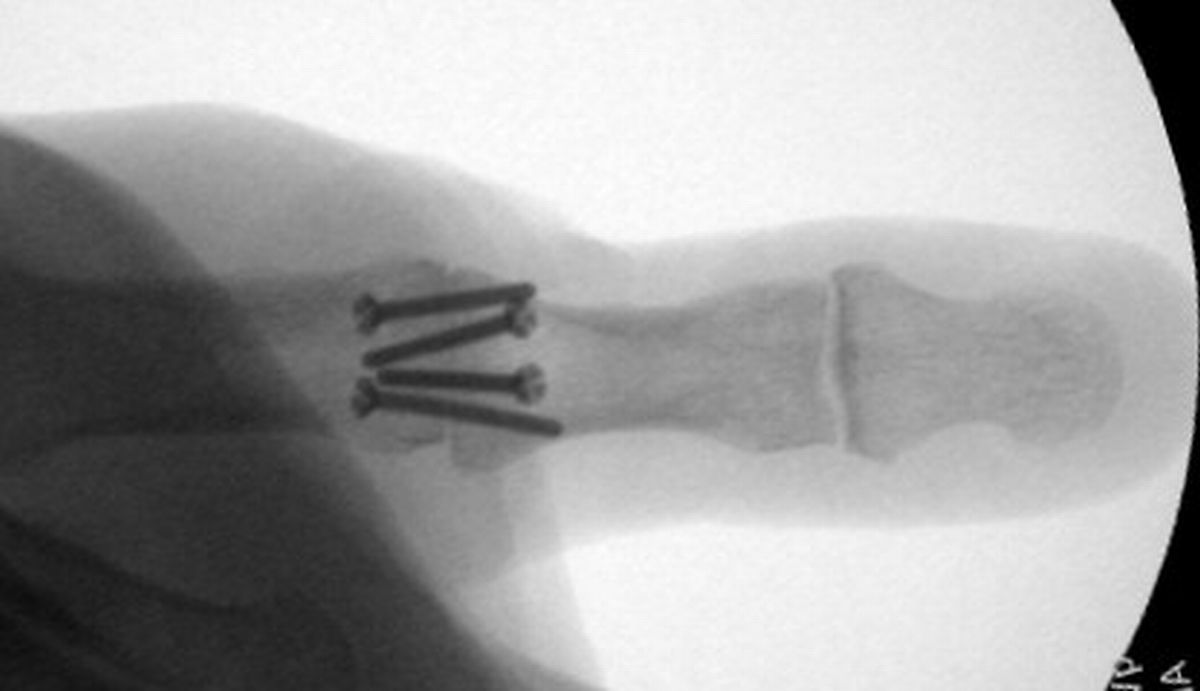

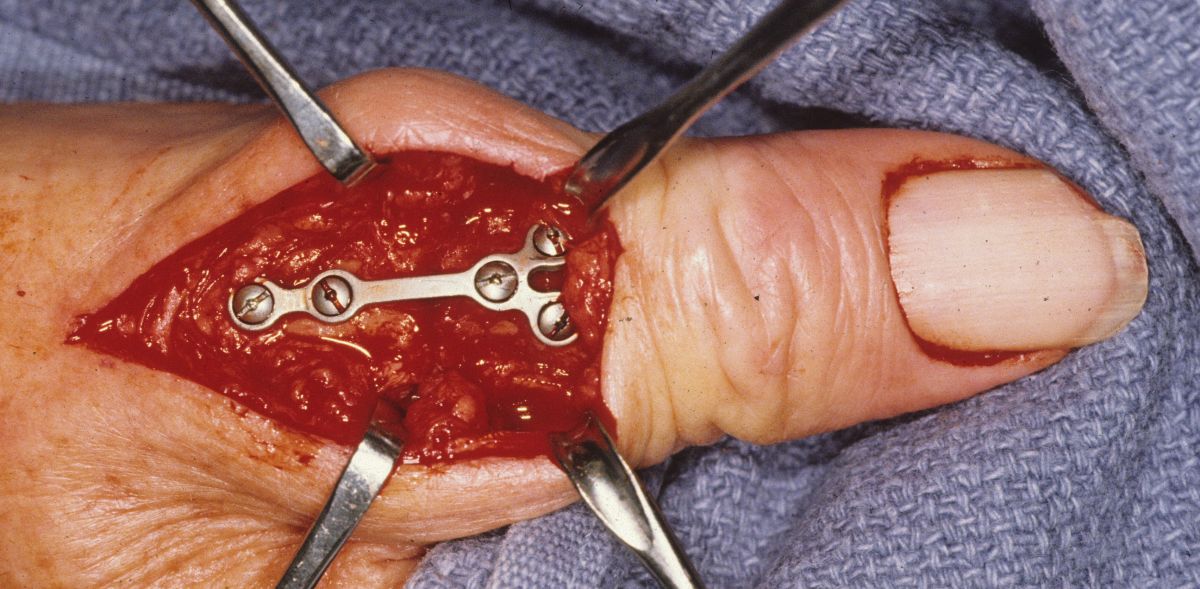

These were then replaced, one at a time, with 1.5mm screws. Because of the entry angles, the countersink bit was used to reduce screw head prominence.
Highslide

Highslide

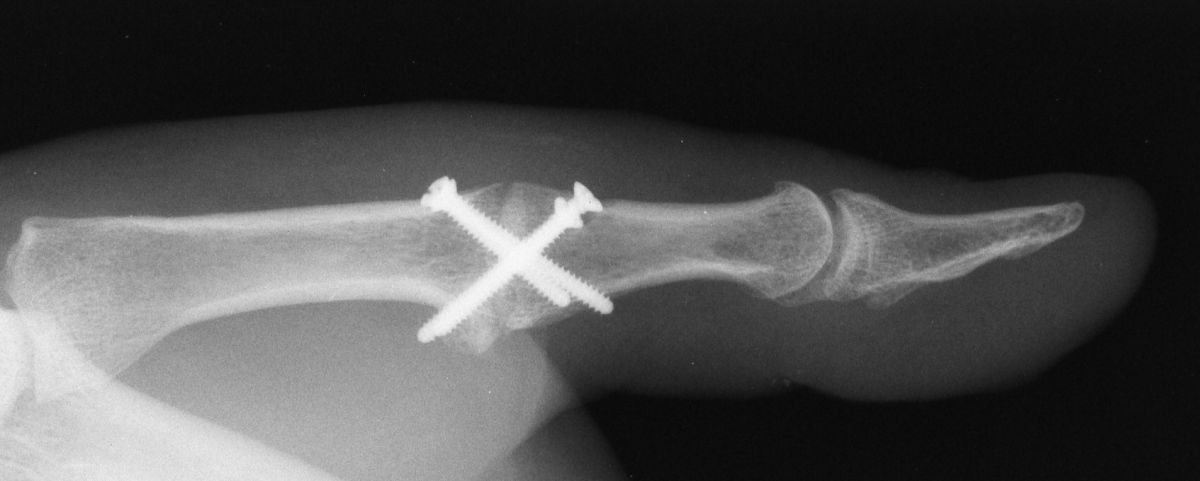

Final Result
Highslide

Highslide
